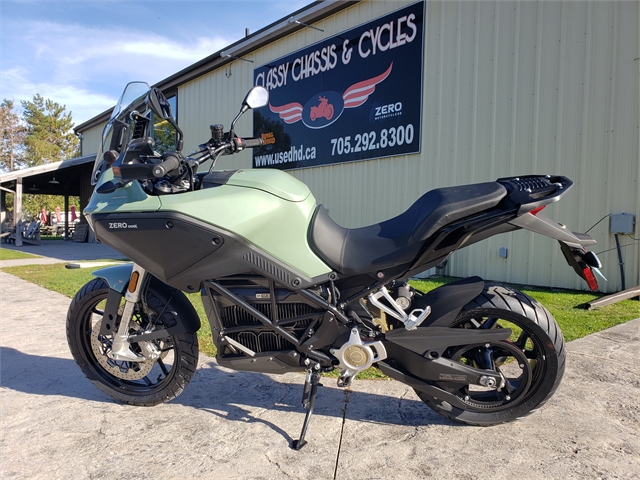

2023 Zero ZERO DSR/X

TECHNICAL SPECIFICATIONS

ZF17.3

CITY RANGE                        290 KM

PEAK TORQUE                   166 FT-LB

CURB WEIGHT                   247 KG

Carrying capacity              252 KG

Low maintenance 100% ELECTRIC POWERTRAIN

1 HOUR CHARGE TIME With Rapid Charger

Top Speed (max) 180KPH, 112 MPH

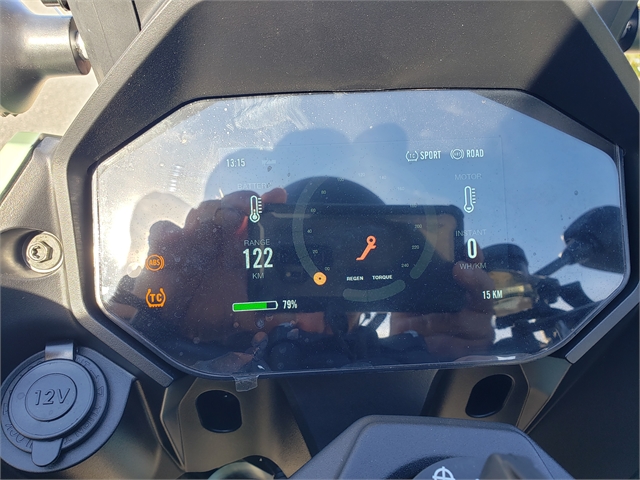

Operating system CYPHER III+

Seat height  828 MM

BOSCH Motorcycle stability control

CLUTCHLESS DIRECT DRIVE Transmission

5 YEARS/UNLIMITED KM Power pack warranty*

Range

City 180 miles                                    290 km

Highway, 55 mph (89 km/h)        172 km

Highway, 70 mph (113 km/h)      137 km

Motor ZF17.3

Peak torque                        166 ft-lb (225 Nm)

Peak power                        100 hp (75 kW) @ 3,650 rpm

Top speed (max)              112 mph (180 km/h)

Top speed (sustained)   100 mph (161 km/h)

Type

Z-Force 75-10 enhanced thermal efficiency, passively air-cooled, torque optimized interior permanent magnet AC motor

Controller

High efficiency and power dense, 900 Amp, 3-phase AC controller with regenerative deceleration

Power system

ZF17.3

Power pack                         Z-Force® Li-Ion intelligent integrated

Max capacity                      17.3 kWh

Nominal capacity              15.2 kWh

Charger type                      6.6 kW integrated

Charge time (standard)

2.7 hours (110% charged) / 2.0 hours (95% charged)

With 6 kW Rapid Charger

1.6 hours (110% charged) / 1.0 hours (95% charged)

Drivetrain

ZF17.3

Transmission

Clutchless direct drive

Final drive

90T / 22T, Gates Carbon Drive Moto X9™ belt, 25 mm wide

Chassis / Suspension / Brakes

ZF17.3

Front suspension

Showa 47mm Separate Function Cartridge Forks with adjustable spring preload, compression, and rebound damping

Rear suspension

Showa 46mm piston, piggy-back reservoir shock with adjustable tool-less spring preload, compression, and rebound damping

Front suspension travel

7.48 in (190 mm)

Rear suspension travel

7.48 in (190 mm)

Front brakes

Bosch Advanced MSC with Combined Braking (eCBS), Vehicle Hold Control (VHC) and Off-Road mode, dual J-Juan radial 4-piston calipers with radial master cylinder, 320x5mm discs

Rear brakes

Bosch Advanced MSC with Combined Braking (eCBS), Vehicle Hold Control (VHC) and Off-Road mode, J-Juan 2x25mm piston floating caliper, 265x4.5mm disc

Front tire

Pirelli Scorpion Trail II 120/70-19

Rear tire

Pirelli Scorpion Trail II 170/60-17

Front wheel

3.00 x 19

Rear wheel

4.50 x 17

Dimensions

ZF17.3

Wheelbase

60.0 in (1,525 mm)

Seat height

32.6 in (828 mm)

Accessory, low

31.7 in (805 mm)

Accessory, tall

34.1 in (865 mm)

Rake

25°

Trail

4.3 in (109 mm)

Weight

ZF17.3

Curb weight

544 lb (247 kg)

Carrying capacity

556 lb (252 kg)

Economy

ZF17.3

Equivalent fuel economy (city)

398MPGe (0.59 l/100 km)

Equivalent fuel economy (highway)

188 MPGe (1.25 l/100 km)

Typical cost to recharge

$1.94

Pricing

ZF17.3

MSRP

$31,595 CAD

Warranty

ZF17.3

Standard motorcycle warranty*

2 years

Power pack warranty*

5 years/unlimited km
